Hatch
Square inside outside opening marine deck hatch
item no.:
LDH-in\outside openilead time:
60 daysproduct orgin:
Taiwanshipping port:
Kaohsiungcolor:
SilverSquare inside outside opening marine deck hatch
#CE Approved. According to ISO/DIS 12216 Deck Hatches are approved for Area II, III, and IV, designs for craft type "any".
#Low profile elegant appearance.
#316 stainless steel frames, hatch, hatch arms and hinges. Hand polished and electro-polished to protect against corrosion. Frames and hatches are made from machine rolled stock to ensure strength and low weight.
#Positive easy to operate stainless arms allowing full 180 degree opening with pull-turn knobs to hold hatch open.
#Adjustable injection molded Nylon 66 handles.
#Set screw adjustment in each hinge to avoid hinge pins coming out.
#Tough, glare resistant acrylic tops.
#Inside opening, inside/outside opening and double opening available.
#Inside /outside models with 100%Stainless Steel snag free handle.
| INSIDE OPENING | |||||||||||||

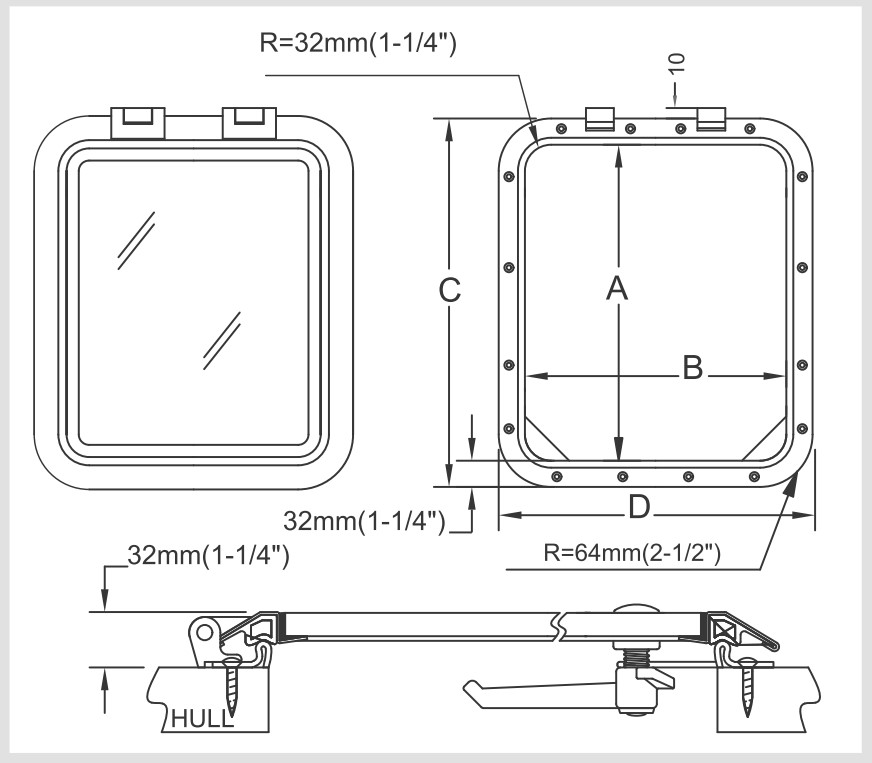

| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDH-08-I | 8 1/8 X 13 3/4 | 206x349 | 8 1/8 | 206 | 13 3/4 | 349 | 10 5/8 | 270 | 16 1/4 | 413 | 1/2 | 12 | 4.7KG |
| LDH-10-I | 10 X 10 | 254x254 | 10 | 254 | 10 | 254 | 12 1/2 | 318 | 12 1/2 | 318 | 1/2 | 12 | 4.4KG |
| LDH-20-I | 12 1/2 X 17 1/2 | 318x444 | 12 1/2 | 318 | 17 1/2 | 444 | 15 | 382 | 20 | 508 | 1/2 | 12 | 7.1KG |
| LDH-30-I | 14 1/2 X 19 1/2 | 369x495 | 14 1/2 | 369 | 19 1/2 | 495 | 17 | 433 | 22 | 559 | 1/2 | 12 | 8.1KG |
| LDH-40-I | 16 1/2 X 16 1/2 | 419x419 | 16 1/2 | 419 | 16 1/2 | 419 | 19 | 483 | 19 | 483 | 1/2 | 12 | 7.9KG |
| LDH-50-I | 19 1/2 X 19 1/2 | 495x495 | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 22 | 559 | 1/2 | 12 | 10KG |
| LDH-60-I | 24 X 24 | 610x610 | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 26 1/2 | 674 | 1/2 | 12 | 13KG |
| LDH-70-I | 31 X 31 | 788x788 | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 33 1/2 | 852 | 1/2 | 12 | 19.2KG |
| IN/MM | |||||||||||||
| IN/OUTSIDE OPENING | |||||||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDH-30-O | 14 1/2 X 19 1/2 | 369x495 | 14 1/2 | 369 | 19 1/2 | 495 | 17 | 433 | 22 | 559 | 1/2 | 12 | 8.3KG |
| LDH-40-O | 16 1/2 X 16 1/2 | 419x419 | 16 1/2 | 419 | 16 1/2 | 419 | 19 | 483 | 19 | 483 | 1/2 | 12 | 8.1KG |
| LDH-50-O | 19 1/2 X 19 1/2 | 495x495 | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 22 | 559 | 1/2 | 12 | 10.2KG |
| LDH-60-O | 24 X 24 | 610x610 | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 26 1/2 | 674 | 1/2 | 12 | 13.2KG |
| LDH-70-O | 31 X 31 | 788x788 | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 33 1/2 | 852 | 1/2 | 12 | 19.6KG |
| IN/MM | |||||||||||||
| DOUBLE OPENING | |||||||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDH-50-D | 19 1/2 X 19 1/2 | 495x495 | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 22 | 559 | 1/2 | 12 | 10.8KG |
| LDH-60-D | 24 X 24 | 610x610 | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 26 1/2 | 674 | 1/2 | 12 | 14.3KG |
| LDH-70-D | 31 X 31 | 788x788 | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 33 1/2 | 852 | 1/2 | 12 | 20.4KG |
|
IN/MM |
|||||||||||||
