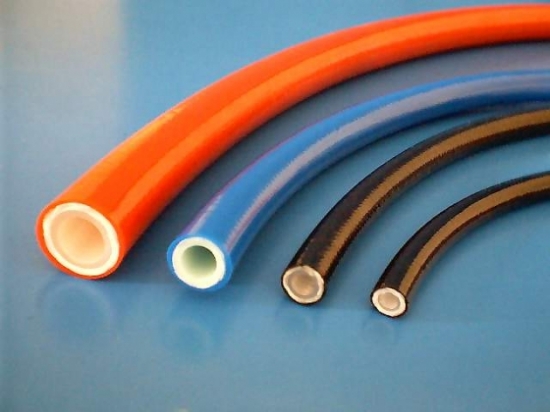

Marine Steering Gear Thermoplastic Hydraulic Hose

Marine Steering Gear Thermoplastic Hydraulic Hose

Thermoplastic Hydraulic Hose

  • item no.:

    FUEL HOSE
  • lead time:

    60 days
  • product orgin:

    Taiwan
  • brand:

    HF
  • shipping port:

    Kaohsiung
  • MOQ:

    5000
products details

Meets or exceeds the requirements of SAE 100R7

  • Meets or exceeds 100R7 Standards
  • Light weight and flexible


// Construction

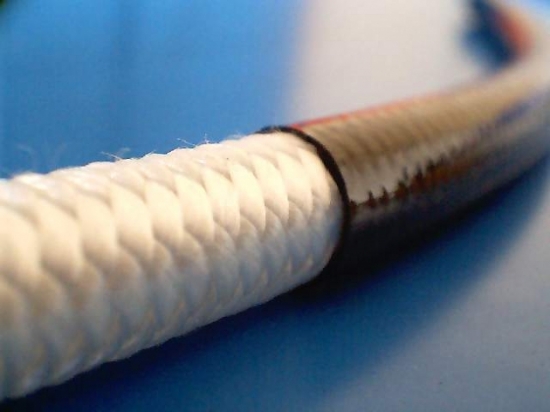

Internal core in the Nylon / TPEE reinforcement in polyester- fiber, exterior covering in polyurethane, on request it is also available micro perforated.

// Applications
The hoses in the R7 series have been created for oleo dynamic use at medium pressure.

// Temperature Range
from -40°C to +100 °C
max. working temperature of air, water and fluids containing water: 65°C

// Working pressure
4 to 1 safety factor or customize


// Customize logo and colour

Your own logo & colour




Hose Type Spec.
Inches
Nominal
I.D.
Nominal
O.D.
Maximum
Working
Pressure
Minimum
 Bend
Radius

WEIGHT
HPH-R7-02 1/8 3.5mm 8.5mm 4500PSI 15mm 0.05kg/m
HPH-R7-03 3/16 4.8mm 10.5mm 4500PSI 20mm 0.06 kg/m
HPH-R7-04 1/4 6.4mm 12.5mm 3300PSI 40mm 0.11 kg/m
HPH-R7-05 5/16 7.9mm 14.5mm 3300PSI 45mm 0.13 kg/m
HPH-R7-06 3/8 9.5mm 16.0mm 2250PSI 50mm 0.15 kg/m
HPH-R7-08 1/2 12.7mm 20.5mm 2000PSI 75mm 0.22 kg/m
